Custom Seamless Cold Drawn Honed Hydraulic Cylinder Tubing 30mm Wall Thickness

Name: Custom Seamless Cold Drawn Honed Hydraulic Cylinder Tubing 30mm Wall Thickness
Brand: Torich
Price: 1000 USD

Wholesale Custom Seamless Cold Drawn Honed Hydraulic Cylinder Tubing 30mm Wall Thickness from china suppliers

Model Number : EN10305-1

Brand Name : Torich

Certification : ISO9001:2008, TS16949

Place of Origin : China

MOQ : 5 tons

Price : 1000-3000 USD/TON

Supply Ability : 12000 tons per year

Packaging Details : In bundles, Wooden Box

Contact Now

Seamless cold drawn/rolling steel tubes Steel tubes for precision applications. Technical delivery conditions.

Size range:

Cylinder ID: 20-400mm

O.D.:6-500mm

W.T.:1-30mm

L:max12000mm

Steel Grade and Chemical Compositions:
Steel Grade		C	Si	Mn	P	S	Al
Steel name	Steel number	max	max	max	max	max	min
E215	1.0212	0.10	0.05	0.70	0.03	0.025	0.025
E235	1.0308	0.17	0.35	1.20	0.03	0.025	-
E355	1.0580	0.22	0.55	1.60	0.03	0.025	-

Mechanical properties at room temperature
Steel grade		Minimum values for the delivery condition
Steel name	steel nubmer	(+C^c)		(+LC^c)		(+SR)			(+A^d)		(+N) NBK
Steel name	steel nubmer	Rm Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %	Rm Mpa	A %	Rm Mpa	ReH Mpa	A %
E215	1.0212	430	8	380	12	380	280	16	280	30	290-430	215	30
E235	1.0308	480	6	420	10	420	350	16	315	25	340-480	235	25
E355	1.0580	640	4	580	7	580	450^f	10	450	22	490-630	355	22
^aRm: tensile strength; ReH: upper yield strength; A: elongation after fracture
^b 1Mpa=1N/mm²
^c Depending on the degree of cold work in the finishing pass the yield strength may nearly be as high as the tensile strength.
For calculation purposes the following relations are recommended:
for delivery condition +C: ReH ≥0.8 Rm
for delivery condition +LC: ReH ≥0.7 Rm
^d For calclulation purposes the following relation is recommended:ReH≥0.5Rm
^e For tubes with outside diameter ≤30mm and wall thickness ≤3mm the ReH minimim values are 10Mpa lower than the values given in this Table
^fFor tubes with outside diameter＞160mm: ReH≥420Mpa

Note: Special steel grade is also available, according to customer request.

Applications: for Auto industry/for machinery use/Oil Cylinder Tube/Motorcyle shock absorber Auto shock absorber innder cylinder/Telescopic Cylinders

Custom Seamless Cold Drawn Honed Hydraulic Cylinder Tubing 30mm Wall Thickness

Product Tags:

honed hydraulic cylinder tubing

hydraulic cylinder pipe

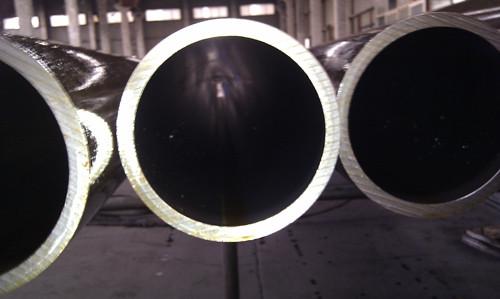

Custom Seamless Cold Drawn Honed Hydraulic Cylinder Tubing 30mm Wall Thickness Images
