Double Wall PVF Coated Bundy Low Carbon Steel Tube

Name: Double Wall PVF Coated Bundy Low Carbon Steel Tube
Brand: Torich
Price: 1 USD

Wholesale Double Wall PVF Coated Bundy Low Carbon Steel Tube from china suppliers

Brand Name : Torich

Model Number : ISO9001

Certification : ISO9001 TS16949

Place of Origin : China

MOQ : 2 tons

Payment Terms : L/C, T/T

Supply Ability : 50000 TONS PER YEAR

Delivery Time : 3-4 week days

Packaging Details : In wooden box package

Product name : Bundy Tube Bundy Pipe PVF Coated Bundy Tubes

Size : 4.76，6.35

Length : Straight or Coil

End : Plain end or BE

Material : Low carbon steel

Coating : PVF

Contact Now

Bundy Tube Bundy Pipe PVF Coated Bundy Tubes

Copper brazed double wall steel tube is made of steel strips which is copper plated on both sides.It has widely applied for automobiles,refrigerators and the other hydraulic system industries.

Dimension and specification

O.D. mm	Thickness mm	Weight g/m	Assurance pressure kg/cm3
4.76	0.7	70.28	350
6.00	0.7	91.76	350
6.35	0.7	97.75	350
7.00	0.7	108.75	350
7.14	0.7	111.17	350
8.00	0.7	126.31	350

Tolerance

O.D. and W.T. +/-0.08mm

Chemical Composition

C ≤ 0.12%

Mn ≤ 0.50%

P≤ 0.04%

S≤ 0.045%

Mechanical properties

Tensile strength ≥30kgf/mm2

Yield point ≥18kgf/mm2

Elongation(50mm)≥25%

Hardness(HR30T)≤ 65

Expand test Take 3 samples of 200mm,expand the pipe outside dimension to larger than 25%

Internal cleanliness Particle and oil ＜0.194g/m2

Double Wall PVF Coated Bundy Low Carbon Steel Tube

Product Tags:

PVF Coated Steel Tube

Bundy Low Carbon Steel Tube

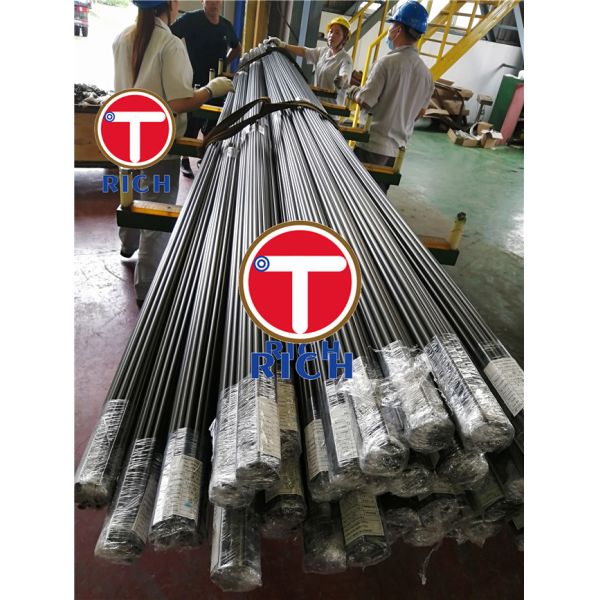

Double Wall PVF Coated Bundy Low Carbon Steel Tube Images
